MIS Capacitors

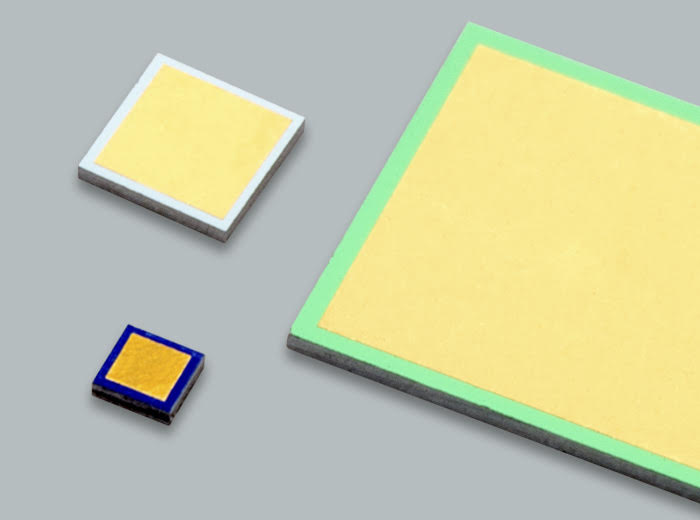

The SemiGen 8000 and 8100 series of MIS Capacitors are available in a wide variety of capacitance ranges and sizes. They are made with prime starting material and consist of an Oxide/Nitride layer that provides low dielectric loss and high standoff voltage. These RF microwave chip capacitor products are available in chip form only.

Request a Quote

8100 Series Capacitors, Working Voltage >100V

Capacitance Range Chip Size (±.002”)
Dim A x Dim B x Dim C
Type
0.1 pf thru 1.9 pf .010" x .010" x .005" 810R1 thru 811R9
2.0 pf thru 9.9 pf .015" x .015" x .005" 812R0 thru 819R9
10.0 pf thru 29.0 pf .020" x .020" x.006" 8110R thru 8129R
30.0 pf thru 49.0 pf .030" x .030" x.006" 8130R thru 8149R
50.0 pf thru 99.0 pf .040" x .040" x .008" 8150R thru 8199R
100 pf thru 199 pf .050" x .050" x .008" 81100 thru 81199
200 pf thru 399 pf .070" x .070" x.008" 81200 thru 81399

8000 Series Capacitors, Working Voltage >50V

Capacitance Range Chip Size (±.002”)
Dim A x Dim B x Dim C
Type
2.0 pf thru 10.0 pf .010" x .010" x .005" 802R0 thru 8010R
10.0 pf thru 29.0 pf .015" x .015" x .005" 8010R thru 8029R
30.0 pf thru 49.0 pf .020" x .020" x.006" 8030R thru 8049R
50.0 pf thru 99.0 pf .030" x .030" x.006" 8050R thru 8099R
100 pf thru 199 pf .040" x .040" x .008" 80100 thru 80199
200 pf thru 399 pf .050" x .050" x .008" 80200 thru 80399
400 pf thru 600 pf .070" x .070" x.008" 80400 thru 80600

Features:

  • Very High Q
  • Low Temperature Coefficients
  • Low Dissipation Factor
  • Long-Term Stability
  • Gold Contacts Front and Back
  • Die as Thin as 3 mils for Limiting Inductance

Applications:

For use in applications that require DC protection, RF bypassing or fixed tuning of amplifiers, oscillators, switches, filters and multipliers.



HOW TO ORDER:

  • Go to 8100 Series chart.
    Select capacitance range required.
    Check CHIP size for compatibility with your circuit.
  • Go to 8000 Series chart for smaller chip size with lower working voltage.
  • Specify part number and chip size at time of order.
