DC to 50 GHz Surface Mount Attenuator Pads Ranging from 1 dB to 30 dB with Excellent Flatness on a chip size of 0.03”x0.03”

Posted on Monday, August 08, 2016
DC to 50 GHz Surface Mount Attenuator Pads Ranging from 1 dB to 30 dB with Excellent Flatness on a chip size of 0.03”x0.03”

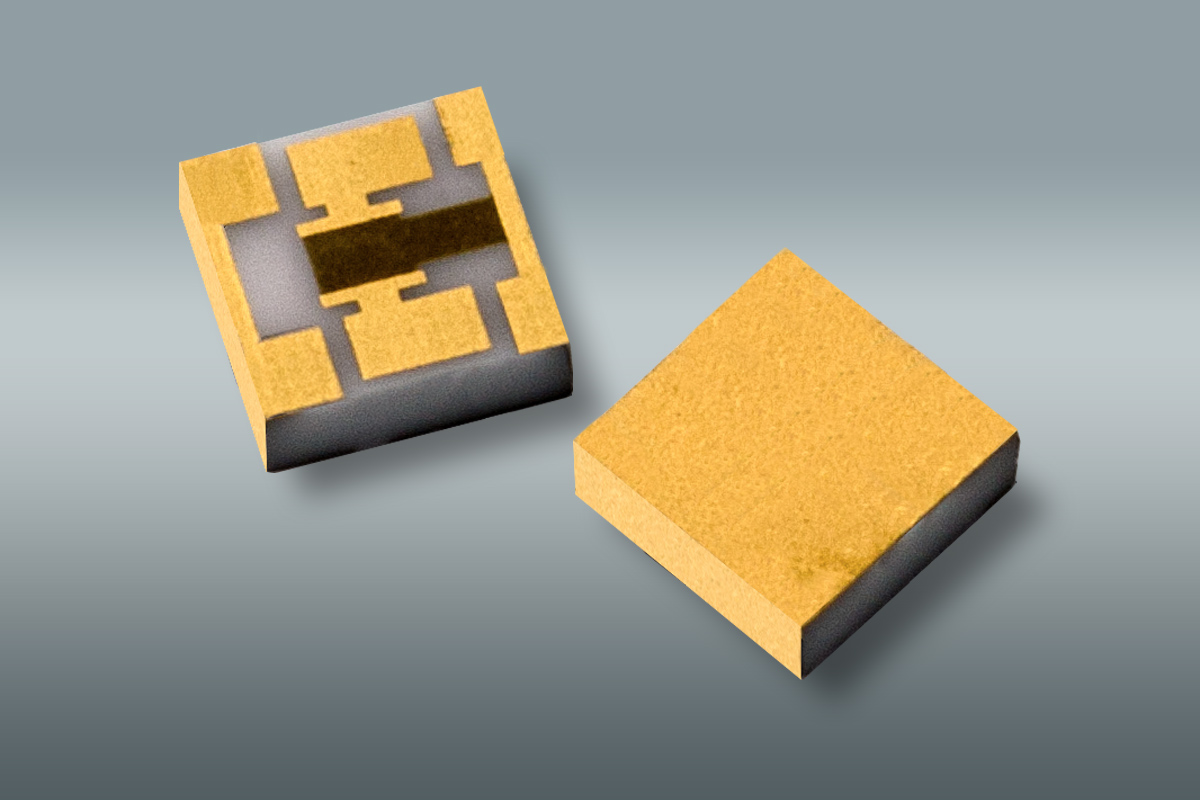

SemiGen offers a selection of fixed attenuators pads with an attenuation of 0 dB up to 100 dB. These attenuator pads feature precise resistor films and superior metallization resulting in a flat response from DC to up to 50 GHz. Attenuator pads offer power handling from 1W to 5W continuous wave (CW) with minimum return losses of 18 dB up to 14 GHz and 16 dB from 15 GHz to 50 GHz.

These attenuators are optimized for coplanar waveguide or microstrip PCB and microwave module assemblies. SemGen’s advanced thin-film technology allows these parts to have full side wraps for surface mount or on-board installations with a chip size of 0.03”x0.03” on most of the designs. Ideally suited for a wide range of applications up to 50 GHz including microwave, radio, military subsystem, fiber optics, medical, and sensors.

Visit the SemiGen Product Library to download a full datasheet on the Fixed Attenuator Pads.
